Welcome to the the Farleygreene website.
Farleygreene have been manufacturing sieving & screening equipment since 1976.
We supply our machines to the Food, Pharmaceutical, Chemical and associated process industries. From simple checking sieves & multiscreen separators to centrifugal and gyratory screeners. We can also put together bespoke systems incorporating machinery from a number of partners we work with to provide a simple, cost effective solution to almost any application.
Please browse our website to see our range of sieving machinery, liquid mixing equipment & process accessories.

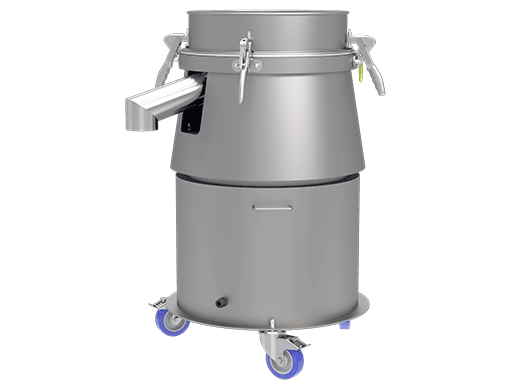

There a various forms of sieving, the simplest and most used is check sieving. This is where a product is passed through a mesh to give 2 fractions - oversize & fines. This is commonly used by food producers for sieving dry ingredients into a mix to check there are no contaminants. There are many forms to this system from mobile small batch units to inline low profile machines or sack / bag dispensing stations with dusthoods & extraction systems to protect the operator from harmful airborne dust.
Click here to see our check sieve ranges............................................

The next common application for sieving is usually grading of products into different sizes. For instance if you have a single product it can be separated into anything from 2 to 5 sizes determined by the mesh size on each screen. This can be achieved in a single pass within one machine with special galleries to deflect each separation into the centre of the next screen for optimum efficiency.
Click here to see our range of grading separators..............................

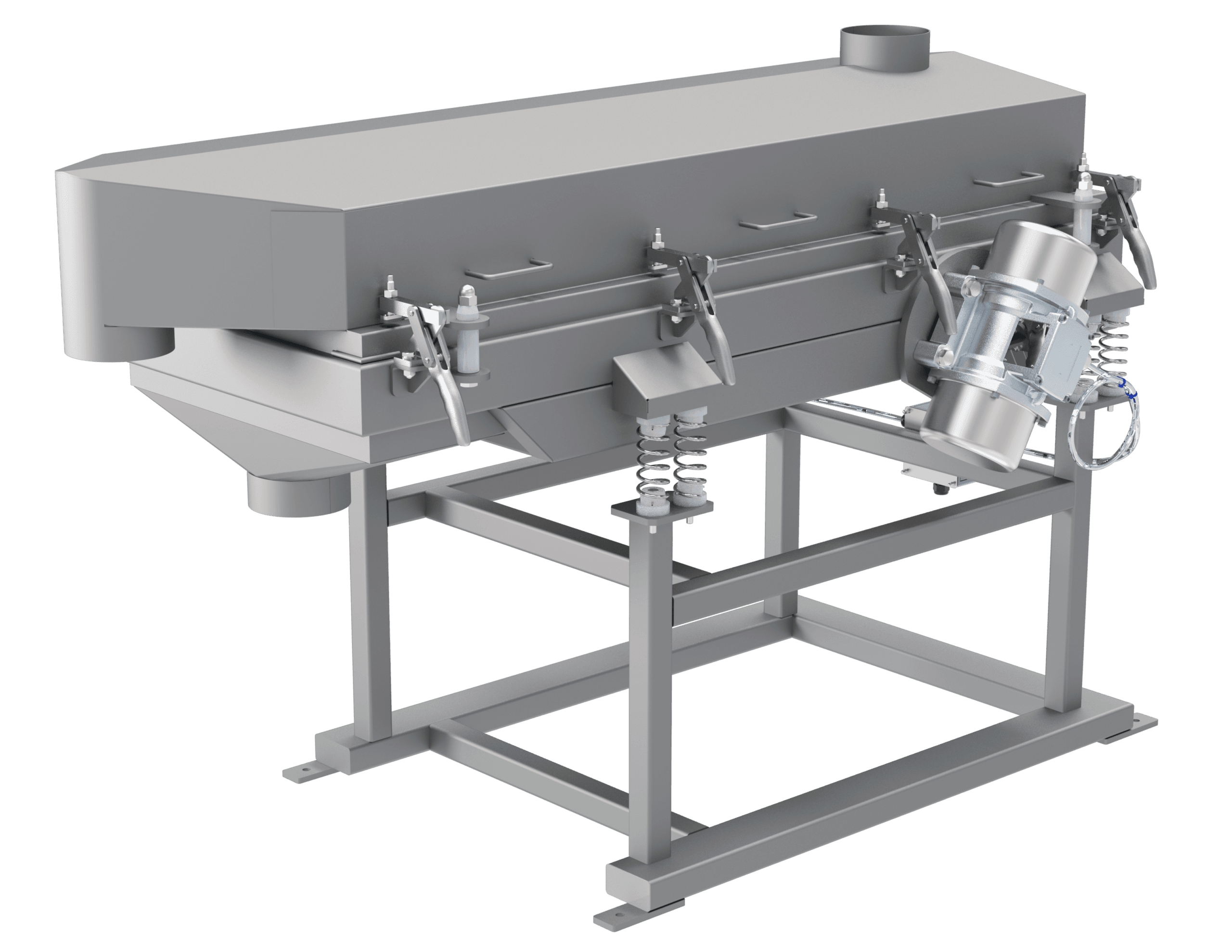

Some customers require a material to be dedusted or dewatered this can be done most effectively on a flat rectangular screener. This type of screener has a gentle but powerful action that does not damage the product but can achieve a excellent liquid or dust free product, for instance removing juice from chopped fruit or removing dust from biscuits. It can be used as a check or grading sieve if the application requires an offset infeed and discharge, and can take the place of a conveyor.
Click here to see our range of linear screeners...................................

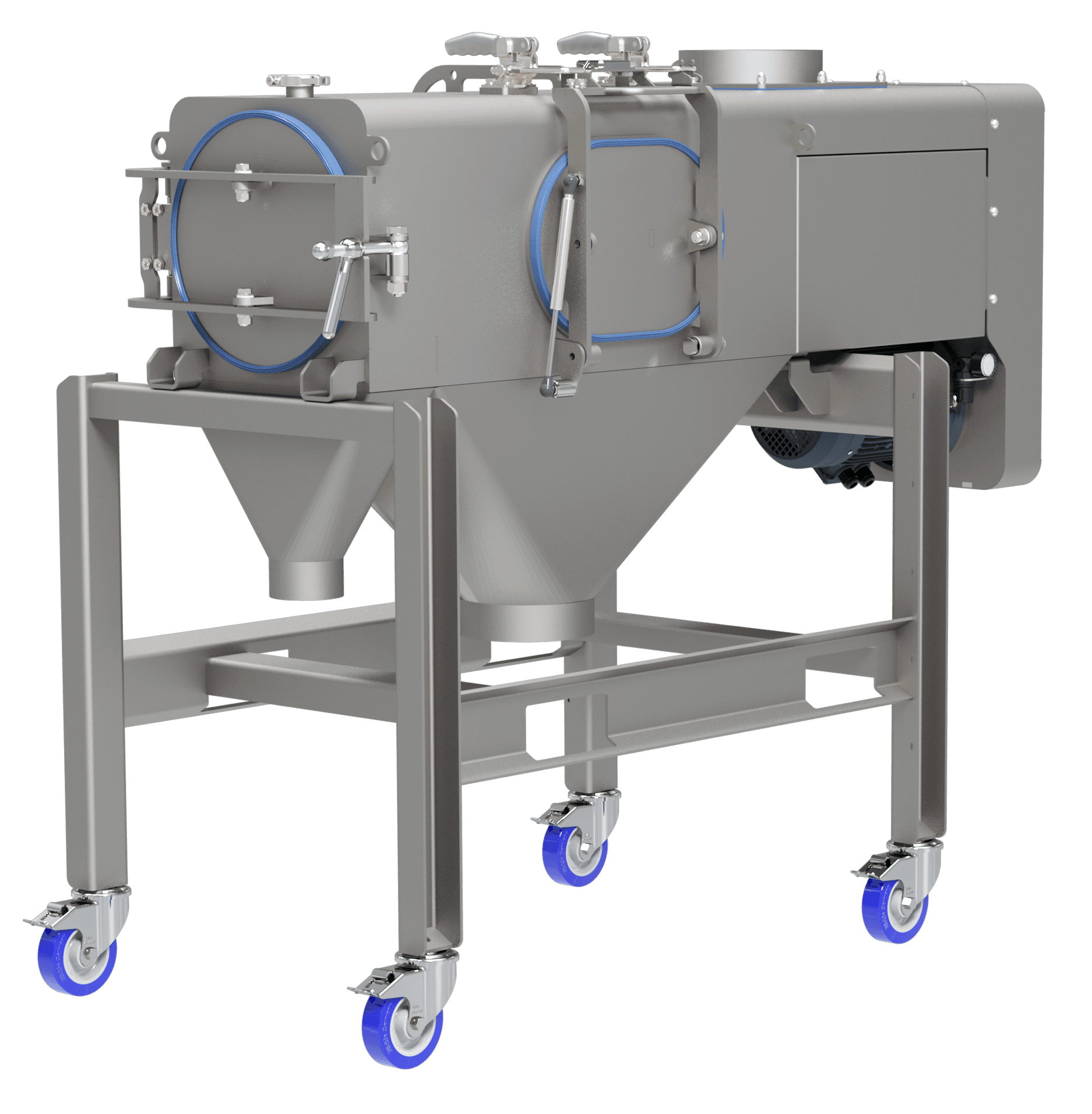

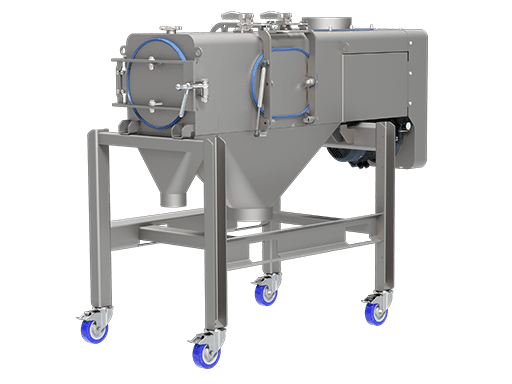

For users that require a screened product at very high throughput rates a centrifugal or rotary sifter can be used. These units are non vibratory machines that incorporate an auger type feed section that inputs powders into a helical paddle assembly which pushes the powder through a cylindrical mesh basket.
Click here to see our range of rotary sifters........................................

Within the recycling and aggregate industries large rectangular gyratory screeners can be used. This type of screening can call for a unit up to 12 feet long or more. These machine provide a highly efficient action with a larger stroke than vibratory machines and can be used to grade materials like wood chip or rubber crumb.
Click here to see our range of gyratory feeders & screeners..............

Lastly laboratories require a means of analysing a given sample for exact micron particle size. This unit is a small, typically 200mm diameter, vibrating unit with a predetermined certified set of pans. The sample is left for a set amount of time on the machine, which produces an exact breakdown of particle sizes. The mesh used on these units is woven to a very high tolerance and is fully certified.
Click here to see our range of laboratory sieves..............................

We offer 3 types of mixing equipment, firstly we can supply a range of liquid agitators for use with low or high viscosity materials. We have a range of standard drive systems, either direct or gear driven, that can be matched with turbine or prop, on a bespoke basis, to your exact mix requirements. This range is also available in a laboratory size unit that offers full extrapolation to process sized units and can be supplied with over 30 different mix heads.
Click here to see our liquid mixer range...............................

Following on from the liquid mixers we have a series of hi shear mixers both top entry and inline types. These can be supplied with a range of mix and cutting heads to suit the application.
Click here to see our range of hi shear mixers....................

Lastly we have our planetary dough or paste mixers. These are top of the range units imported from Denmark. They are sized from 5 litre to 200 litres and come with a multitude of accessories both as standard and as optional extras. This can be anything from whisks to grinding, mincing & cutting attachments.
Click here to see our range of planetary mixers..................

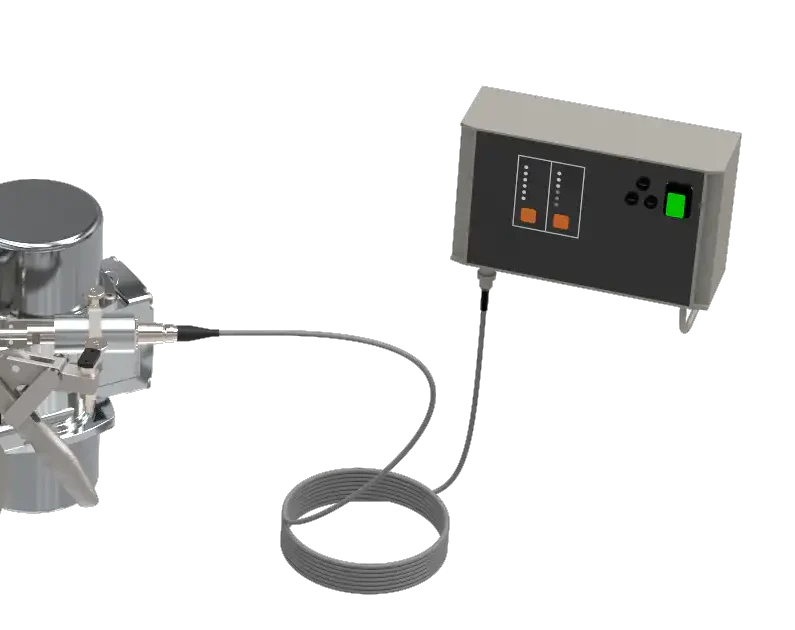

To complement our sieving machine range we can add ultrasonic de-blinding to any unit. Our system can improve throughput times by up to 300%. The technology we use is different to other suppliers systems by the way it washes over the mesh which eliminates heat build up, that in turn increases mesh life and there is no need for tuning as the systems can select the correct frequency via the digital control generator.
Click here to see examples of our ultrasonic systems.........

We can supply or offer advice on any aspect of process equipment as single items. As members of SHAPA and our knowledge of the process industry we have links with many manufacturers.
Click here to see our other process equipment......

Maintenance of any process equipment is an important part of industry. We have a vast stock of our parts and we can mesh almost any type of screen as well as substantial access to parts for most sieving machines on the market past & present. We can also supply flexible sleeves of any size or type.
Click here to see our process accessories...........................

Cost effective processing is of prime importance to our customers and we can provide a solution to any application no matter how improbable the space may seem. We can provide systems that are both cost effective and simple to use, giving you a one stop contact for your process needs
Click here to see examples of our process systems...........

We have recently become the preferred partner in the UK for the ARTECH ultrasonic system. We can now offer this brand new superior technology for deblinding screens. It is less expensive to purchase and run than other systems, and we can offer retro fit kits for existing installations.                                                       more ultrasonic information...............................

The Sievmaster Slimline 550 has been upgraded to include a new high capacity ‘Full flow’ outlet funnel increasing the capacity of the unit by 50% in some cases. This unit also comes in an ATEX 21 execution as standard.            more on check sieve range..................................

Our Easilft sacktip station has been supplied into Fox’s Biscuits. The unit was configured to discharge into 6 separate mixers as required via a vacuum conveyor mounted on the rear of the frame. Allowing a clean, simple and efficient solution to their application.
                                                                           more on this installation.......................................

Farleygreene have re-launched the ‘Multiscreen’ range of grading separators. Now with more efficient vibratory motors, easier to clean panwork, lighter bonded mesh rings, ultrasonic systems, improved clamping arrangements.. more on multiscreen range...................................

Not far away now for PPMA 2009. We will be showing our new Multiscreen & ultrasonic system at the show as well as the first ever ultrasonic system for use on a rotary centrifugal mesh basket. Also there will be our Easilift sacktipping station, the Sievmaster 500-S bakery sieve plus other equipment from our ranges.
                                                                           more on the PPMA show.......................................
