Small Batch Sieving

Sievmaster 200-S

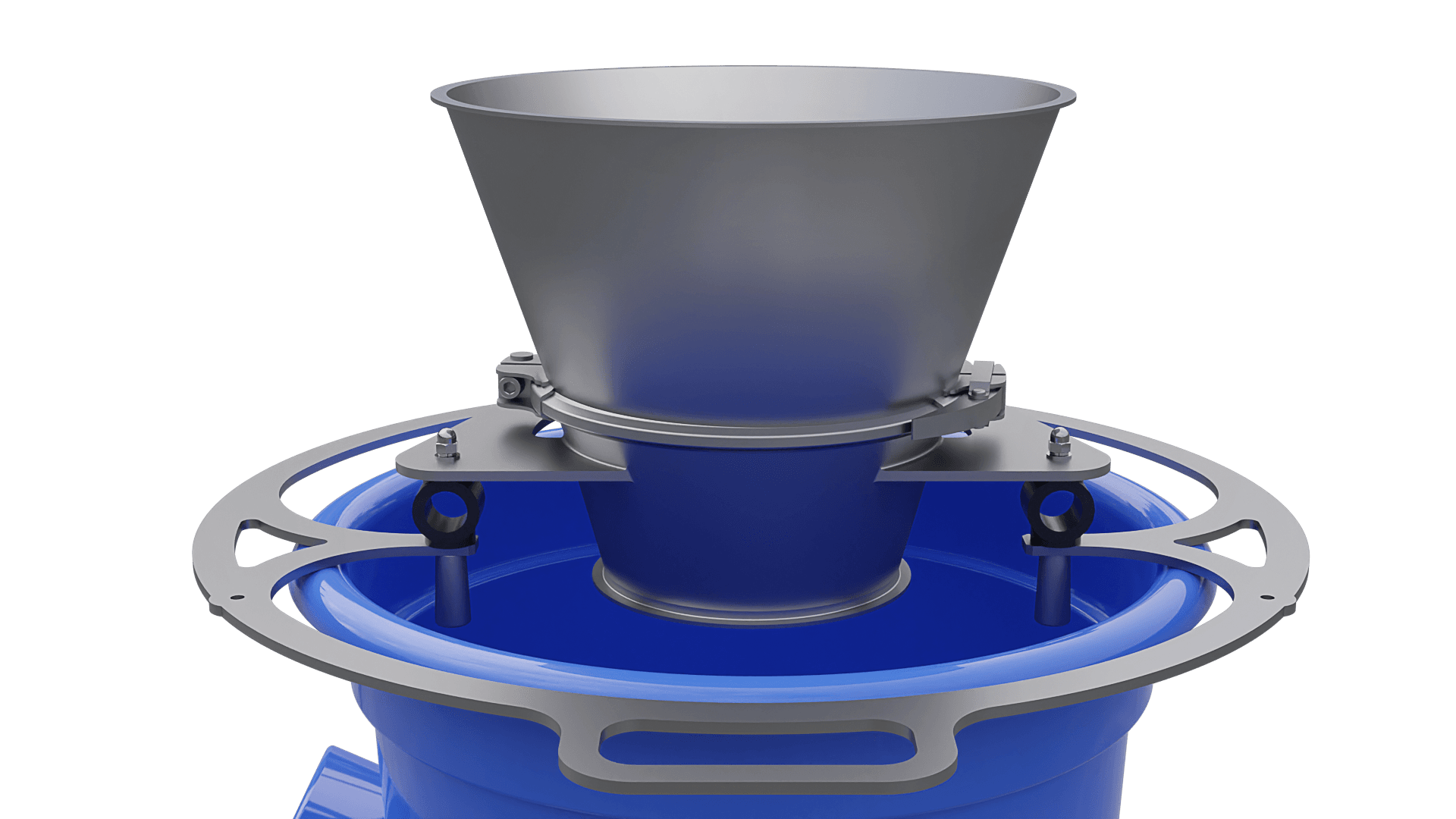

The Sievmaster 200-S is a small vibratory sieve designed with an open hopper. A circular frame supports the sieve and allows it to sit on top of a mixing bowl.

What is the Sievmaster 200-S?

The 200-S provides users with a 200 mm diameter, all stainless steel, check sieve at an affordable price.

It is designed to sit directly on top of a container, from a small bucket to a larger wheeled tote bin. Ingredients are tipped into the top and check sieved straight through into the container below.

It can be used for straining liquids as well as dry ingredients and it comes with 3 interchangeable mesh inserts for coarse, medium & fine/liquid applications.

Features & Benefits

  • Easy-Clean hygienic design, no crevices
  • Conforms to CE, UKCA, FDA, EC 1935/2004 and ANIA regulations
  • No tool, quick change screens
  • Wet or dry applications
  • Dust and waterproof to at least IP65
  • Open top hopper for ease of dispensing
  • All stainless steel body and contact parts
  • Low maintenance/running costs – tool free disassembly & minimal servicing

Download our brochure

Discover more about how our small batch sieving products can help you. View the specification for this product here.

Download

Industries using the Sievmaster 200-S Sieve

Food & Drink

Pharmaceutical

Chemical

Additive Manufacturing

Applications where Sievmaster 200-S Sieve is used

The 200-S can be used for sieving small batches of a variety of powders, liquids, and ground products for the food, beverage, and chemical industries, as well as artisan producers.

Flours
Designed for sitting on top of mixing bowls, the 200-S is suited for our artisan customer running a smaller scale operation.

Hemp Powders
Small but powerful, the 200-S can be used for sieving hemp, removing contaminates to ensure a high-quality end product.

Seeds
The 200-S comes with 3 different sized aperture mesh inserts, ideal for grading different sized seeds.

Configurable product options

The Sievmaster 200-S is available with a range of different options and finishes depending on individual user requirements.

Top Dust Cover

Removable top cover with metal detectable blue gasket and clamp.

Top Cone Meshed

ET5145 adhesive (food grade).

Bench Mounting Kit

To allow the sieve to be freestanding and small buckets to be slid underneath.

Collection Bin

Wheels available.

Internal Dull Polish to <0.8Ra



Specification

The below displays the specs for the Sievmaster 200-S vibratory sieve. For further specs and information, please get in touch to find out more.

SM 200-S
Max Throughput with 2mm mesh
(product and mesh dependent)
900 kg/h (1980 Ibs/h)
Screen Diameter200 mm (7.9”)
Standard Motor0.05 kW (0.1 HP)
Approx. Weight35 kg (77 Ibs)
Standard FinishSatin finish 0.95Ra
Typical Noise Level<70dB (certificates available)
ATEX Rating (Internal & external)ATEX rating not available.
Optional Certifications3.1 material, EAC, IECEx, and UL certificates.
Contact Parts304 Stainless steel (1.4301) upgrade to 316 (1.4401) available
Non-Contact Parts304 Stainless steel (1.4301) upgrade to 316 (1.4401) available
Country of DesignUnited Kingdom
Country of ManufactureUnited Kingdom
