Sievgen 04-S

Sievgen 04-S (SG 04-S) is an environmentally sealed ultrasonic sieve that uses a touch screen interface to automate metal powder sieving directly from an Additive Manufacturing (AM) machine.

What is the Sievgen 04-S

A highly automated, ultrasonic sieve for recycling and processing metal powders.

To meet the needs of our additive manufacturing customers, our powder processing system has been developed to reduce both downtime and operator involvement.

The unit opens up to reveal the sieve at the heart of the process, allowing unhindered cleaning access and minimising turnaround times between batches or material changes. Its straightforward interface enables automation of the process, releasing the operator from continual supervision of the recycling process, whilst still keeping them in control.

Controlled. Efficient. Safe.

Features & Benefits

  • Batch weight control – control of machine through weighing of processed powder.
  • Highly automated user interface – intuitive menu based system.
  • Quick clean – accessible system (on sliding drawer deck) for quick clean or part change.
  • A complete conveying and sieving solution – compact, all in one design, easy to manoeuvre.
  • High throughput ultrasonic sieving – aids throughput whilst maintaining high single pass efficiency.
  • Enhanced filtration – Option to include ULPA (Ultra Low Particulate Air) secondary filter, as well as first stage HEPA filter health monitoring.
  • Flexible Solution – optional layout to allow larger containers (30litres plus) to be wheeled up to the unit and option to add conveying unit to transfer powders directly from unit to AM machine.
  • Secure, enclosed inert atmosphere – sieving and collection of powder into a canister can be done under inert atmosphere to enhance safety protocols and extend powder quality. Oxygen content is monitored, and environment is controlled at the levels you require.

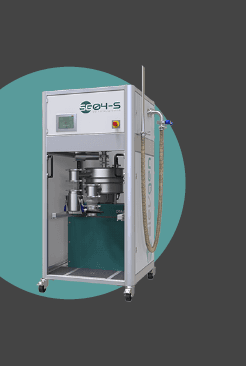

Download our brochure

Discover more about how our Sievgen sieving products can help you. View the specification for this product here.

Download

Industries using the Sievgen 04-S Sieve

Food & Drink

Pharmaceutical

Chemical

Additive Manufacturing

Applications where the Sievgen 04-S Sieve is used

Sievgen 04-S is built to integrate into a factory environment to validate additive powders such as aluminium, titanium, scalmalloy, steel, and colbalt chrome.

Additive Powders
The SG04 automates the recycling process of metal powers within a sealed, monitored, and controlled environment.

Configurable product options

The Sievgen 04-S is available with a variety of different options and finishes depending on each user’s requirements.

O2 Monitoring

Measurement Range: 0-25% O2.



Differential Pressure System

HMI visualisation of filter health.

Ultra-Low Particulate Air Filter

Secondary filter ≥ 99.99995 Percentage efficiency.

Light Beacon

360⁰ visual alarm.

Load Cell (oversize)

Load cell on oversize container.

Large Container/ Barrel Access

Option to fit smaller floor panel to allow container to be wheeled up to sieve.

Return Conveying System

Secondary vacuum pump to allow full control of return loop conveying.

316 Contact Parts

Upgrade from 304 to 316SS for all contact parts.

Internal Surface Polish

To <0.8Ra.

Specification

The table below displays the specs for the Sievgen 04-S. For further specs and information, please get in touch to find out more.



SG 04-S
Indicative Throughput
(product dependent)
MaterialD w (90) Mesh Size Throughput (kg/hr) Throughput (I/hr) Single Pass Efficiency
Steel38 µm 63 98.4 22.9 99.00%
Aluminium44 µm 6328.8 22.2 98.80%
Scallmalloy 44 µm 7536.8 25.6 99.10%
Screen Diameter400 mm (15.7”)
Standard Motor0.26 kW (0.35 HP)
Approx. Weight300kg
Standard FinishSatin finish 0.95Ra
Typical Noise Level<70dB (certificates available)
ATEX Rating (Internal & external)ATEX zone 21 II 2D internal / ATEX zone 22 II 3D external
Optional Certifications3.1 material certs
Contact Parts304 Stainless Steel (1.4301)
Non-Contact Parts304 Stainless Steel (1.4301)
Gaskets and seals from silicone rubber, EPDM & Poly Urethane.
Country of DesignUnited Kingdom
Country of ManufactureUnited Kingdom
Group
Group
Request a quote

"*" indicates required fields

Contact permission*
Occasionally, we would like to send you product updates, company news and other relevant information. Please let us know if you would like to receive our communications.

View All Case Studies

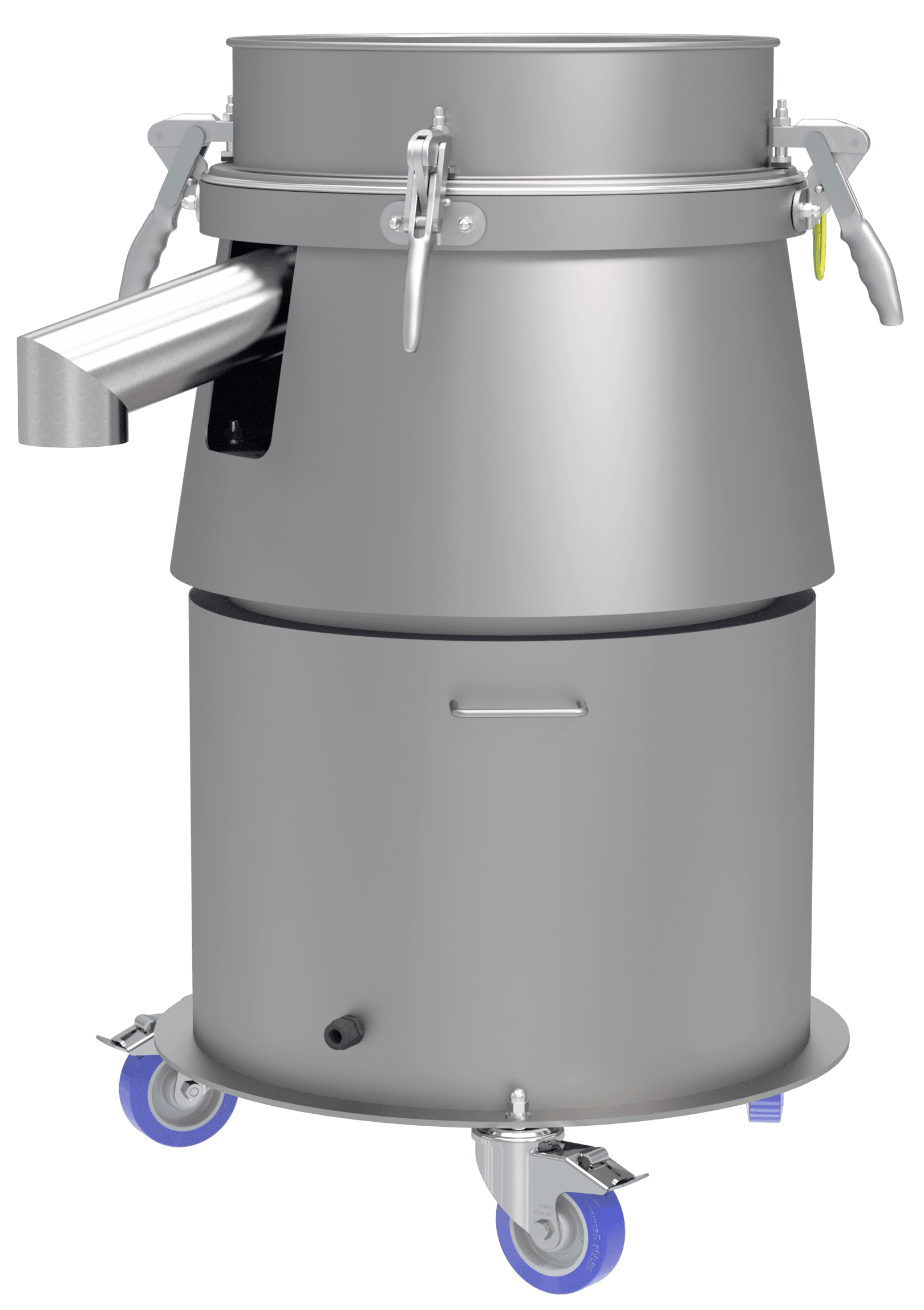

Sievmaster 700-ST
